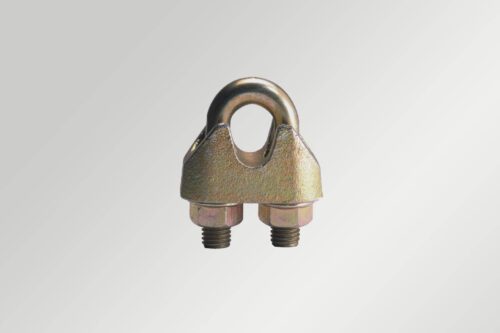

WIRE ROPE CLIPS FORMERLY ACC. TO DIN 1142

Have attention to the note in the download area.

Item-no.	nominal size*	a	b1	b2	d	h1	h2	l	min. quantity**
DK1 0500 00 000 142	5	13	7	13	M5	25	13	25	5
DK1 0600 00 000 142	6.5	17	8	16	M6	32	14	30	5
DK1 0800 00 000 142	8	20	10	20	M8	41	18	39	6
DK1 1000 00 000 142	10	24	12	20	M8	46	21	40	6
DK1 1200 00 000 142***	12	26	14	25	M10	56	24	50
DK1 1300 00 000 142	13	30	15	28	M12	64	29	55	6
DK1 1400 00 000 142***	14	30	15	28	M12	66	28	59
DK1 1600 00 000 142	16	35	18	32	M14	76	35	64	6
DK1 1900 00 000 142	19	36	22	32	M14	83	40	68	6
DK1 2200 00 000 142	22	40	24	34	M16	96	44	74	7
DK1 2600 00 000 142	26	50	26	38	M20	111	51	84	7
DK1 3000 00 000 142	30	55	34	41	M20	127	59	95	8
DK1 3400 00 000 142	34	60	38	45	M22	141	67	105	8
DK1 4000 00 000 142	40	65	44	49	M24	159	77	117	8
